Pullers
GS60 Cableway

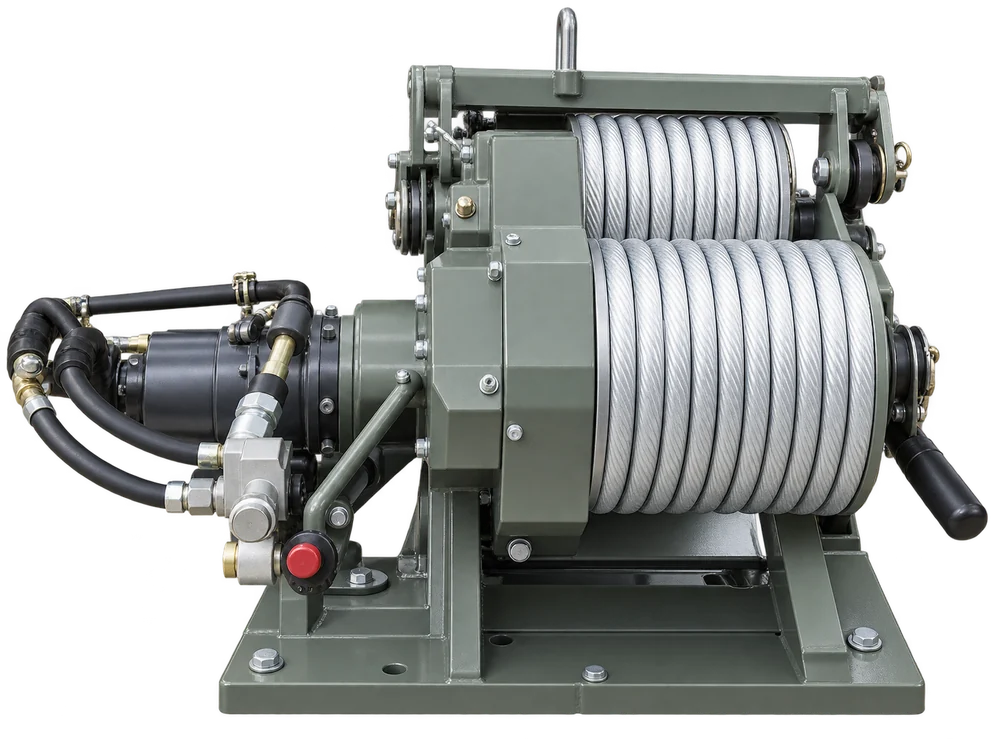

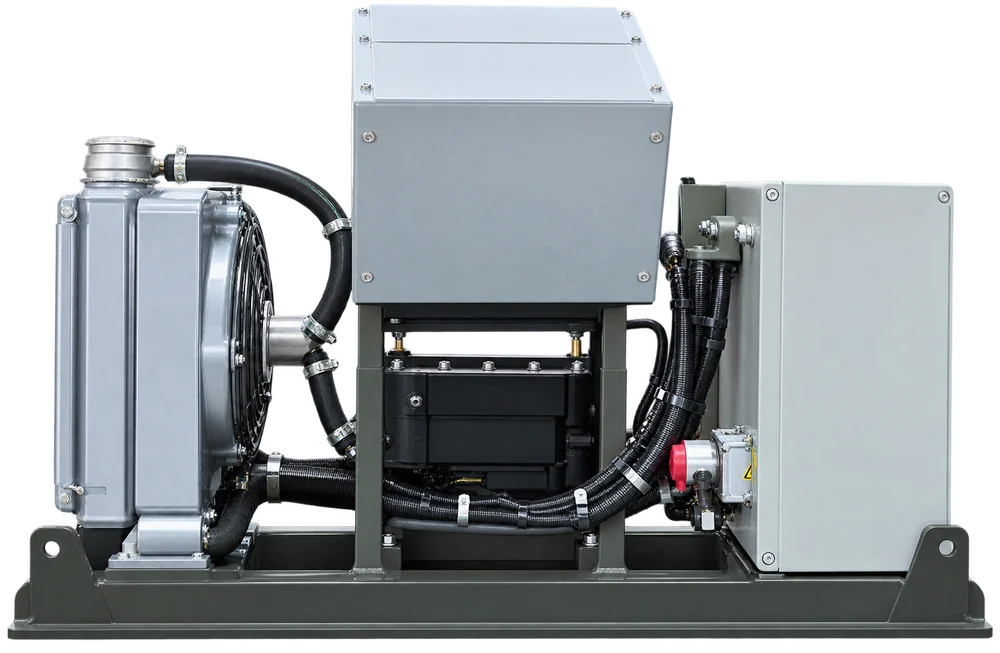

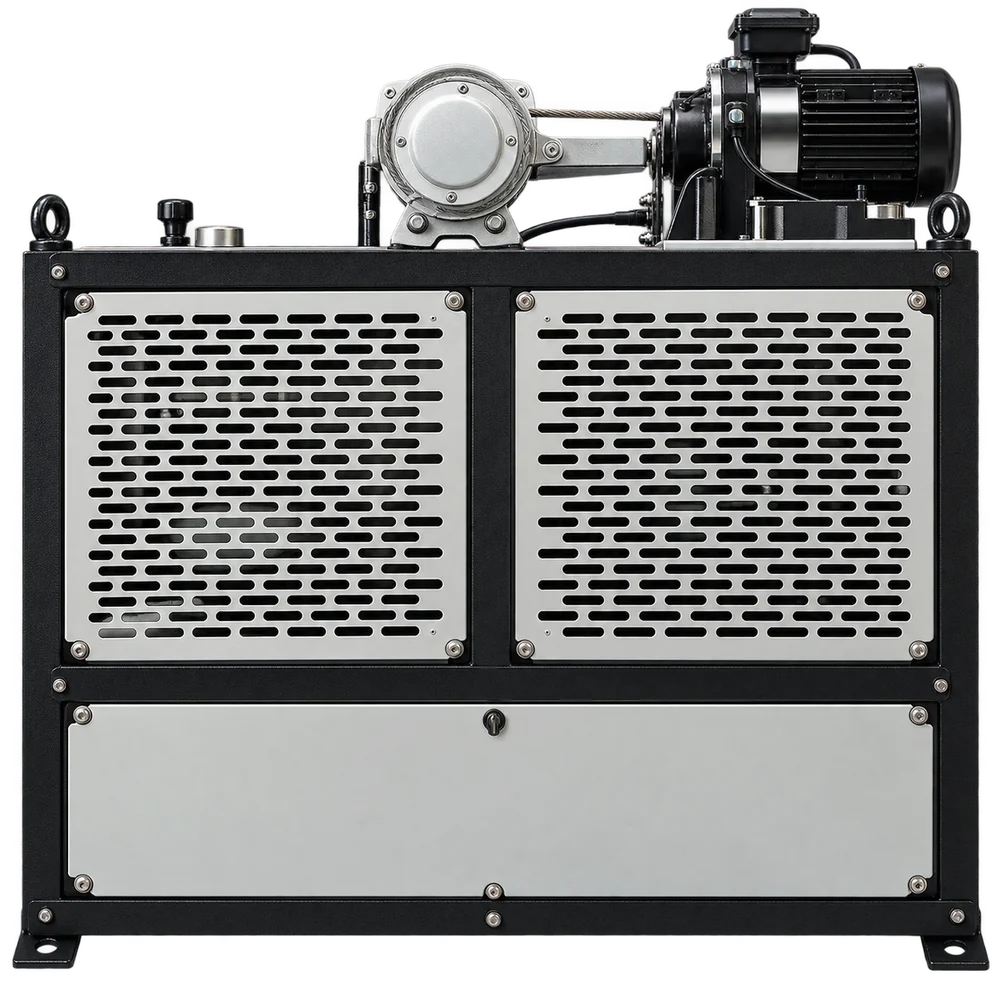

A modular cableway hydraulic puller with separate power, control and traction units for transport between work sites.
Download specification summary · TXT
50 kNMax. continuous pull
5 km/hMaximum speed
350 mmBull-wheel diameter
Working
specifications.
Read force and speed ratings together. Maximum force and maximum speed are not a simultaneous operating point.
| Max. continuous pull | 50 kN |
|---|---|
| Max. intermittent pull | 60 kN |
| Maximum speed | 5 km/h |
| Pull at maximum speed | 25 kN |
| Bull-wheel diameter | 350 mm |
| Maximum rope diameter | 18 mm |
| Total weight | 2000 kg |
| Engine power | 77 kW / 103 hp |
Listed configuration
- Separate power, control and traction modules
Additional devices
Discuss project-specific accessories and configuration with the team.
Specifications transcribed from the GALAXY catalogue. Confirm the current configuration, optional equipment and project suitability before ordering.
Catalogue pp. 12–13
