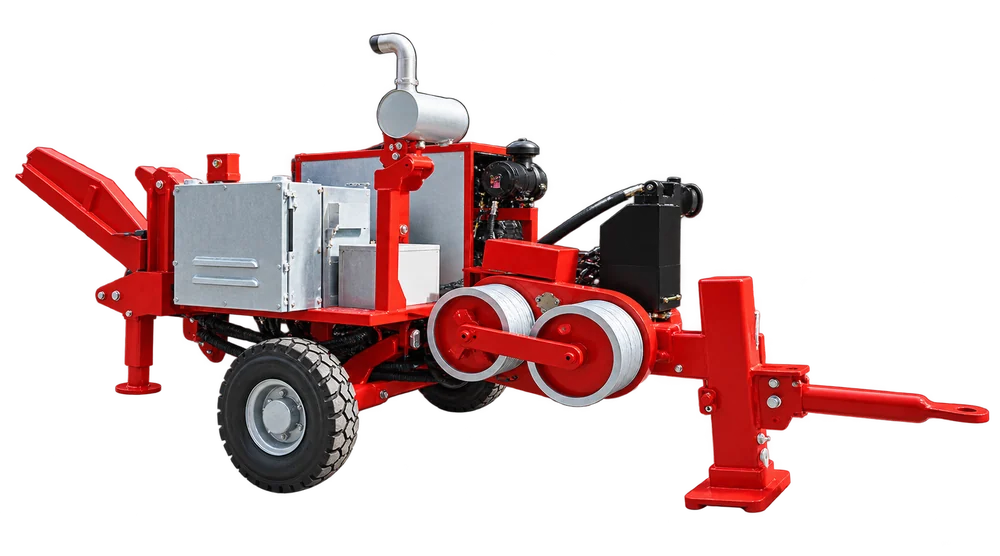

GS40
A hydraulic puller for power line construction. Match continuous pulling force, working speed and rope requirements to your project.
Download specification summary · TXT
30 kNMax. continuous pull
5 km/hMaximum speed
400 mmBull-wheel diameter
Working
specifications.
Read force and speed ratings together. Maximum force and maximum speed are not a simultaneous operating point.
| Max. continuous pull | 30 kN |
|---|---|
| Max. intermittent pull | 40 kN |
| Maximum speed | 5 km/h |
| Pull at maximum speed | 20 kN |
| Bull-wheel diameter | 400 mm |
| Maximum rope diameter | 16 mm |
| Total weight | 3000 kg |
| Overall dimensions | 3800 × 2020 × 2340 mm |
| Engine power | 77 kW / 103 hp |
Listed configuration
- Pull presetting with automatic control
- Hydraulic oil cooling system
- On-board reel winder with automatic level winding
- Grounding connection point
Additional devices
- Lighting system
- Hydraulic rope clamp for reel changes
- Digital speed and metre counter — extra charge
Specifications transcribed from the GALAXY catalogue. Confirm the current configuration, optional equipment and project suitability before ordering.
Catalogue pp. 04–05
