Pullers

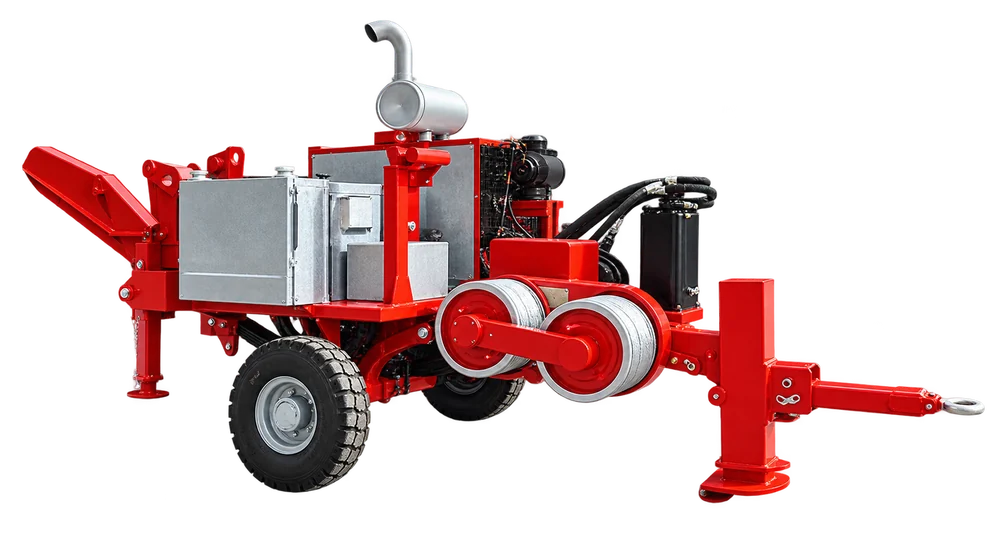

GS220
A hydraulic puller for power line construction. Match continuous pulling force, working speed and rope requirements to your project.
Download specification summary · TXT
180 kNMax. continuous pull
5 km/hMaximum speed
760 mmBull-wheel diameter
Working
specifications.
Read force and speed ratings together. Maximum force and maximum speed are not a simultaneous operating point.
| Max. continuous pull | 180 kN |
|---|---|
| Max. intermittent pull | 220 kN |
| Maximum speed | 5 km/h |
| Pull at maximum speed | 90 kN |
| Bull-wheel diameter | 760 mm |
| Maximum rope diameter | 30 mm |
| Total weight | 6800 kg |
| Overall dimensions | 4600 × 2300 × 2500mm |
| Engine power | 239kW(320hp) |
Listed configuration
- Pull presetting with automatic control
- Hydraulic oil cooling system
- Grounding connection point
- On-board reel winder with automatic level winding
Additional devices
Discuss project-specific accessories and configuration with the team.
Specifications transcribed from the GALAXY catalogue. Confirm the current configuration, optional equipment and project suitability before ordering.
GALAXY Catalogue V2026 · pp. 10–11
