Pullers

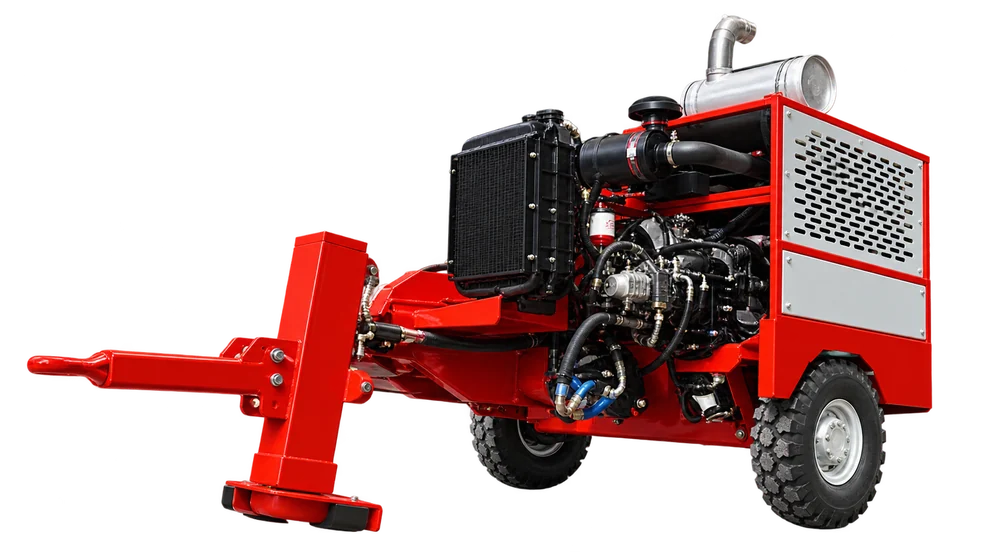

GS150
A hydraulic puller for power line construction. Match continuous pulling force, working speed and rope requirements to your project.
Download specification summary · TXT
120 kNMax. continuous pull
5 km/hMaximum speed
600 mmBull-wheel diameter
Working
specifications.
Read force and speed ratings together. Maximum force and maximum speed are not a simultaneous operating point.
| Max. continuous pull | 120 kN |
|---|---|
| Max. intermittent pull | 150 kN |
| Maximum speed | 5 km/h |
| Pull at maximum speed | 60 kN |
| Bull-wheel diameter | 600 mm |
| Maximum rope diameter | 24 mm |
| Total weight | 5500 kg |
| Overall dimensions | 4300 × 2300 × 2550mm |
| Engine power | 129kW(173hp) |
Listed configuration
- Pull presetting with automatic control
- Hydraulic oil cooling system
- Grounding connection point
- On-board reel winder with automatic level winding
Additional devices
Discuss project-specific accessories and configuration with the team.
Specifications transcribed from the GALAXY catalogue. Confirm the current configuration, optional equipment and project suitability before ordering.
GALAXY Catalogue V2026 · pp. 08–09
