Puller-tensioners

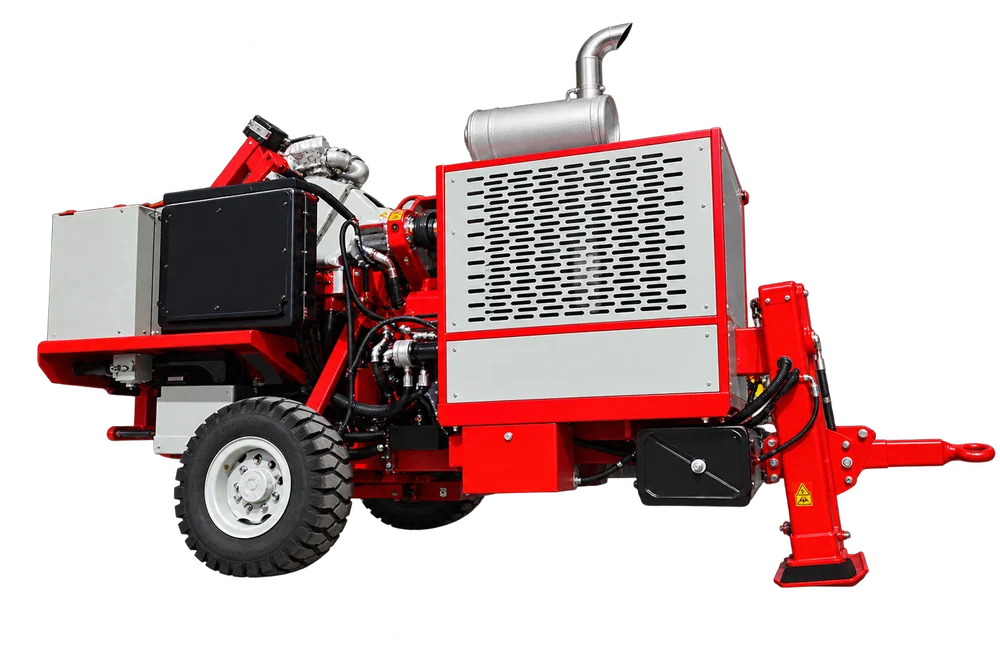

GL90TP
Pulling and tensioning in one machine. Review the pulling and tensioning ratings separately when selecting the configuration.
Download specification summary · TXT
90 kNMaximum pull
90 kNMaximum tension
1500 mmBull-wheel diameter
Working
specifications.
Read force and speed ratings together. Maximum force and maximum speed are not a simultaneous operating point.
| Maximum pull | 90 kN |
|---|---|
| Maximum tension | 90 kN |
| Maximum tensioning speed | 5.0 km/h |
| Maximum pulling speed | 5 km/h |
| Pull at maximum speed | 44 kN |
| Bull-wheel diameter | 1500 mm |
| Maximum rope diameter | 18 mm |
| Maximum conductor diameter | 40 mm |
| Total weight | 4600 kg |
| Overall dimensions | 4700 × 2200 × 2300mm |
| Engine power | 118kW(158hp) |
Listed configuration
- Pull presetting with automatic control
- Hydraulic oil cooling system
- Hydraulic power pack for motorised drum stands
Additional devices
Discuss project-specific accessories and configuration with the team.
Specifications transcribed from the GALAXY catalogue. Confirm the current configuration, optional equipment and project suitability before ordering.
GALAXY Catalogue V2026 · pp. 30–31
