Hydraulic tensioners

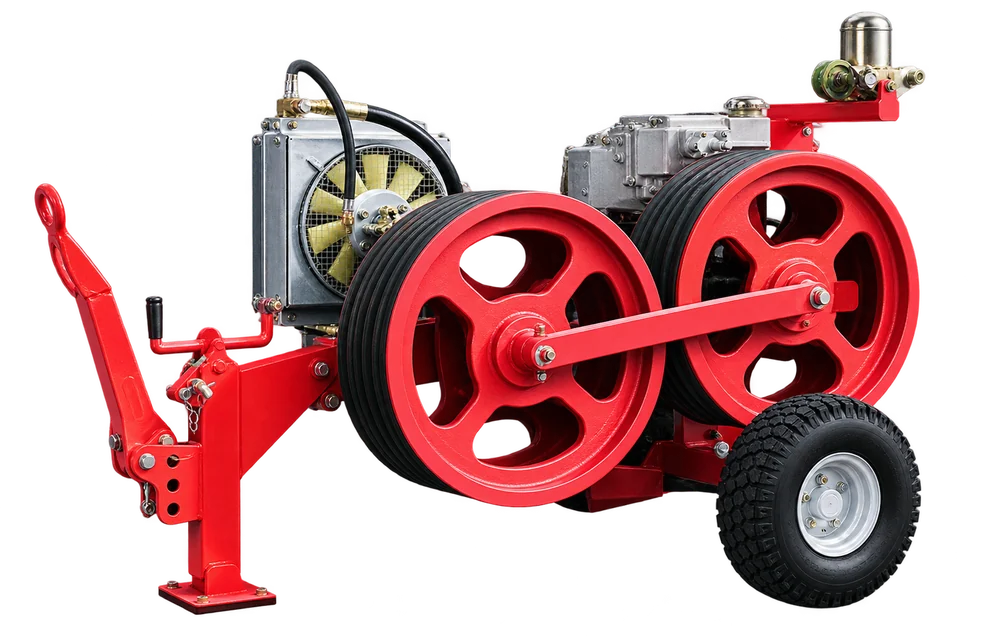

GL1×20-II
A hydraulic tensioner for conductor stringing. Review continuous tension, bull-wheel geometry and conductor dimensions together.
Download specification summary · TXT
20 kNMax. continuous tension
4 km/hMaximum speed
800 mmBull-wheel diameter
Working
specifications.
Read force and speed ratings together. Maximum force and maximum speed are not a simultaneous operating point.
| Max. continuous tension | 20 kN |
|---|---|
| Maximum speed | 4 km/h |
| Bull-wheel diameter | 800 mm |
| Maximum conductor diameter | 23 mm |
| Total weight | 950 kg |
| Overall dimensions | 2400 × 1500 × 1650 mm |
Listed configuration
- Tension presetting with stepless speed control
- Hydraulic oil cooling system
- Grounding connection point
Additional devices
- Trailer air brake system — extra charge
- Hydraulic conductor clamps — extra charge
Specifications transcribed from the GALAXY catalogue. Confirm the current configuration, optional equipment and project suitability before ordering.
Catalogue pp. 16–17
